Samba 4 Domain Controller Installation auf CentOS 7

Ab Version 4.0 ist Samba in der Lage, als Active Directory (AD) Domain Controller (DC) zu arbeiten. In diesem Tutorial zeige ich Ihnen, wie Sie Samba 4 als Domänencontroller mit Windows 10, CentOS 7 und CentOS 6 Clients konfigurieren.

In diesem Tutorial werde ich Samba 4 aus dem Quellcode kompilieren. Wenn Sie eine Samba 4 RPM-basierte Installation und SELinux-Konfiguration für Samba 4 suchen, finden Sie hier mein neues Samba 4-Tutorial.

Ich werde 3 Systeme, einen CentOS 7 Server und einen Windows 10 Client für die Fernverwaltung, einen CentOS 7 und CentOS 6 Client verwenden.

  • 192.168.1.190 Samba4 AD centos7
  • 192.168.1.191 Fernverwaltung gewinnen 10
  • 192.168.1.22 – Client Authentifizierung – centos 7
  • 192.168.1.192 – Client Authentifizierung – centos 6

Installation von Samba 4

192.168.1.190 Samba4 AD centos 7

Basis ist ein CentOS 7 mit minimaler Installation und deaktiviertem SELinux.


[[email protected] ~]# sestatus
SELinux status: disabled
[[email protected] ~]#

Mache einen Eintrag in der Datei /etc/hosts.

[[email protected] ~]# cat /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.1.190   samba4.sunil.cc samba4
[[email protected] ~]#

Installieren Sie den epel repo.

[[email protected] ~]# yum install epel-release -y

Installieren Sie alle Pakete, die Sie für die Kompilierung von samba4 benötigen.

[[email protected] ~]# yum install perl gcc libacl-devel libblkid-devel gnutls-devel readline-devel python-devel gdb pkgconfig krb5-workstation zlib-devel setroubleshoot-server libaio-devel setroubleshoot-plugins\
policycoreutils-python libsemanage-python setools-libs-python setools-libs popt-devel libpcap-devel sqlite-devel libidn-devel libxml2-devel libacl-devel libsepol-devel libattr-devel keyutils-libs-devel\
cyrus-sasl-devel cups-devel bind-utils libxslt docbook-style-xsl openldap-devel pam-devel bzip2 vim wget -y

Jetzt Samba4-Paket herunterladen. Ich benutze Samba-4.6.0, das ist der neueste Stand bei diesem Setup.

[[email protected] ~]#  wget https://download.samba.org/pub/samba/stable/samba-4.6.0.tar.gz

Jetzt können Sie samba4 installieren.

  [[email protected] ~]# tar -zxvf samba-4.6.0.tar.gz
  [[email protected] ~]# cd samba-4.6.0
  [[email protected] samba-4.6.0]# ./configure --enable-debug --enable-selftest --with-ads --with-systemd --with-winbind
  [[email protected] samba-4.6.0]# make && make install

Die Installation dauert je nach Systemgeschwindigkeit ca. 10 Minuten.

Nun werden wir die Domain-Bereitstellung vornehmen.

[[email protected] samba]# samba-tool domain provision --use-rfc2307 --interactive
Realm [SUNIL.CC]:
 Domain [SUNIL]:
 Server Role (dc, member, standalone) [dc]: dc
 DNS backend (SAMBA_INTERNAL, BIND9_FLATFILE, BIND9_DLZ, NONE) [SAMBA_INTERNAL]:
 DNS forwarder IP address (write 'none' to disable forwarding) [4.2.2.1]:
Administrator password:
Retype password:
Looking up IPv4 addresses
Looking up IPv6 addresses
No IPv6 address will be assigned
Setting up share.ldb
Setting up secrets.ldb
Setting up the registry
Setting up the privileges database
Setting up idmap db
Setting up SAM db
Setting up sam.ldb partitions and settings
Setting up sam.ldb rootDSE
Pre-loading the Samba 4 and AD schema
Adding DomainDN: DC=sunil,DC=cc
Adding configuration container
Setting up sam.ldb schema
Setting up sam.ldb configuration data
Setting up display specifiers
Modifying display specifiers
Adding users container
Modifying users container
Adding computers container
Modifying computers container
Setting up sam.ldb data
Setting up well known security principals
Setting up sam.ldb users and groups
ERROR(ldb): uncaught exception - operations error at ../source4/dsdb/samdb/ldb_modules/password_hash.c:2820
  File "/usr/local/samba/lib64/python2.7/site-packages/samba/netcmd/__init__.py", line 176, in _run
    return self.run(*args, **kwargs)
  File "/usr/local/samba/lib64/python2.7/site-packages/samba/netcmd/domain.py", line 471, in run
    nosync=ldap_backend_nosync, ldap_dryrun_mode=ldap_dryrun_mode)
  File "/usr/local/samba/lib64/python2.7/site-packages/samba/provision/__init__.py", line 2175, in provision
    skip_sysvolacl=skip_sysvolacl)
  File "/usr/local/samba/lib64/python2.7/site-packages/samba/provision/__init__.py", line 1787, in provision_fill
    next_rid=next_rid, dc_rid=dc_rid)
  File "/usr/local/samba/lib64/python2.7/site-packages/samba/provision/__init__.py", line 1447, in fill_samdb
    "KRBTGTPASS_B64": b64encode(krbtgtpass.encode('utf-16-le'))
  File "/usr/local/samba/lib64/python2.7/site-packages/samba/provision/common.py", line 55, in setup_add_ldif
    ldb.add_ldif(data, controls)
  File "/usr/local/samba/lib64/python2.7/site-packages/samba/__init__.py", line 225, in add_ldif
    self.add(msg, controls)

[[email protected] samba]#

Es wird einige Fehler geben, wenn wir die Bereitstellung der Domain vornehmen.

Um sie zu beheben, kommentieren Sie bitte die folgende Zeile in /etc/krb5.conf aus.

  --------
  #includedir /etc/krb5.conf.d/
  --------

Führen Sie die Domänenbereitstellung erneut durch und die Domäne wird nun fehlerfrei erstellt.

  [[email protected] etc]# samba-tool domain provision --use-rfc2307 --interactive
Realm [SUNIL.CC]:
 Domain [SUNIL]:
 Server Role (dc, member, standalone) [dc]:
 DNS backend (SAMBA_INTERNAL, BIND9_FLATFILE, BIND9_DLZ, NONE) [SAMBA_INTERNAL]:
 DNS forwarder IP address (write 'none' to disable forwarding) [4.2.2.1]:
Administrator password:
Retype password:
Looking up IPv4 addresses
Looking up IPv6 addresses
No IPv6 address will be assigned
Setting up secrets.ldb
Setting up the registry
Setting up the privileges database
Setting up idmap db
Setting up SAM db
Setting up sam.ldb partitions and settings
Setting up sam.ldb rootDSE
Pre-loading the Samba 4 and AD schema
Adding DomainDN: DC=sunil,DC=cc
Adding configuration container
Setting up sam.ldb schema
Setting up sam.ldb configuration data
Setting up display specifiers
Modifying display specifiers
Adding users container
Modifying users container
Adding computers container
Modifying computers container
Setting up sam.ldb data
Setting up well known security principals
Setting up sam.ldb users and groups
Setting up self join
Adding DNS accounts
Creating CN=MicrosoftDNS,CN=System,DC=sunil,DC=cc
Creating DomainDnsZones and ForestDnsZones partitions
Populating DomainDnsZones and ForestDnsZones partitions
Setting up sam.ldb rootDSE marking as synchronized
Fixing provision GUIDs
A Kerberos configuration suitable for Samba AD has been generated at /usr/local/samba/private/krb5.conf
Setting up fake yp server settings
Once the above files are installed, your Samba4 server will be ready to use
Server Role:           active directory domain controller
Hostname:              samba4
NetBIOS Domain:        SUNIL
DNS Domain:            sunil.cc
DOMAIN SID:            S-1-5-21-2936486394-2075362935-551615353

[[email protected] etc]#

Stellen Sie sicher, dass die Ports in der Firewall offen sind.

[[email protected] etc]#firewall-cmd --add-port=53/tcp --permanent;firewall-cmd --add-port=53/udp --permanent;firewall-cmd --add-port=88/tcp --permanent;firewall-cmd --add-port=88/udp --permanent; \
firewall-cmd --add-port=135/tcp --permanent;firewall-cmd --add-port=137-138/udp --permanent;firewall-cmd --add-port=139/tcp --permanent; \
firewall-cmd --add-port=389/tcp --permanent;firewall-cmd --add-port=389/udp --permanent;firewall-cmd --add-port=445/tcp --permanent; \
firewall-cmd --add-port=464/tcp --permanent;firewall-cmd --add-port=464/udp --permanent;firewall-cmd --add-port=636/tcp --permanent; \
firewall-cmd --add-port=1024-5000/tcp --permanent;firewall-cmd --add-port=3268-3269/tcp --permanent
[[email protected] ~]# firewall-cmd --reload

Erstellen Sie ein Startskript, um den Dienst während des Neustarts automatisch zu starten.

[[email protected] ~]# cat /etc/systemd/system/samba.service
[Unit]
Description= Samba 4 Active Directory
After=syslog.target
After=network.target

[Service]
Type=forking
PIDFile=/usr/local/samba/var/run/samba.pid
ExecStart=/usr/local/samba/sbin/samba

[Install]
WantedBy=multi-user.target
[[email protected] ~]#

[[email protected] ~]# systemctl enable samba
Created symlink from /etc/systemd/system/multi-user.target.wants/samba.service to /etc/systemd/system/samba.service.
[[email protected] ~]# systemctl start samba

Hinzufügen des Windows-Rechners zur Domäne

192.168.1.191 Fernverwaltung gewinnen 10

Stellen Sie sicher, dass der Host mit einer statischen IP-Adresse hinzugefügt wird.

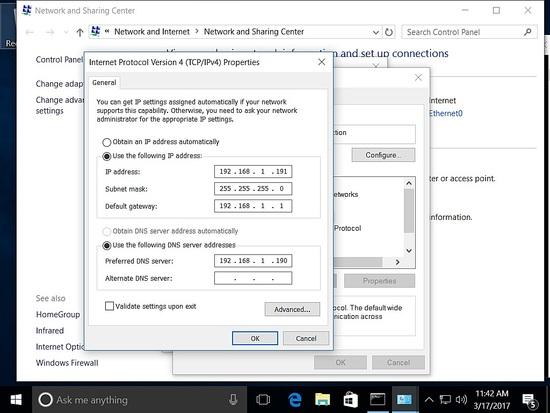

Windows Host mit statischer IP

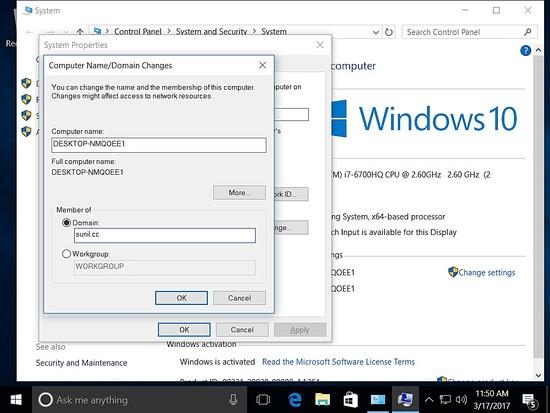

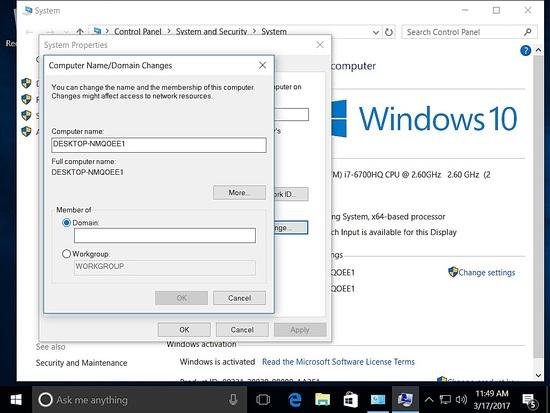

Hinzufügen des Hosts zur Domäne.

Um Samba4 von Windows aus zu verwalten, benötigen wir die Microsoft Remote Server Tools (RSAT).

Die Wiki-Seite hat die Links https://wiki.samba.org/index.php/Installing_RSAT

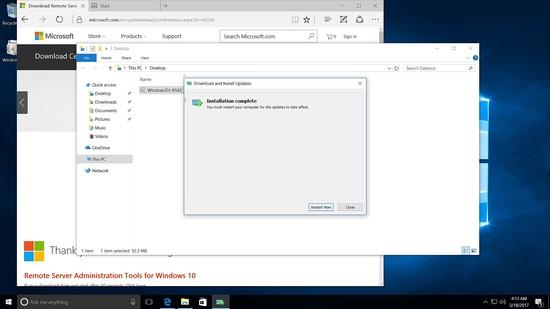

Installation des RSAT-Tools unter Windows 10

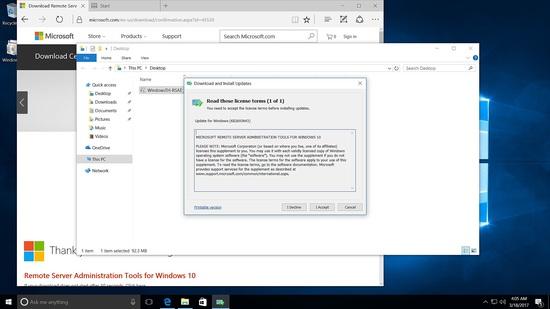

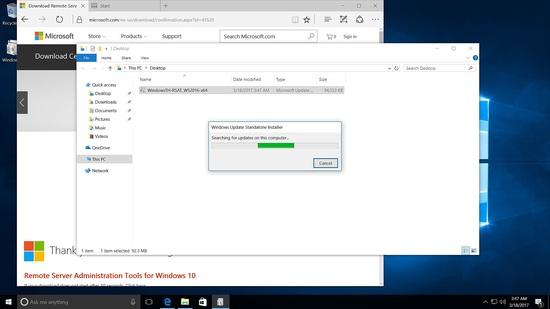

Starten Sie das Installationsprogramm.

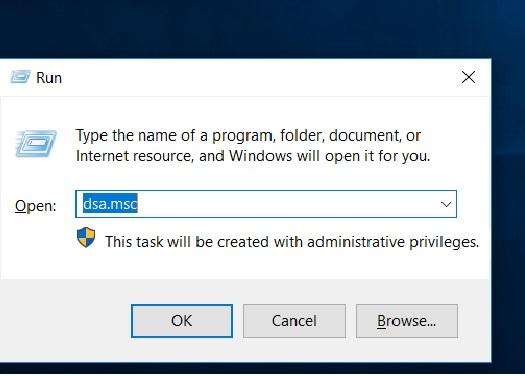

Nach dem Neustart gehen Sie zur Ausführung und geben Sie Folgendes ein dsa.msc

Klicken Sie auf sunil.cc Domain und klicken Sie mit der rechten Maustaste auf neu -> Benutzer.

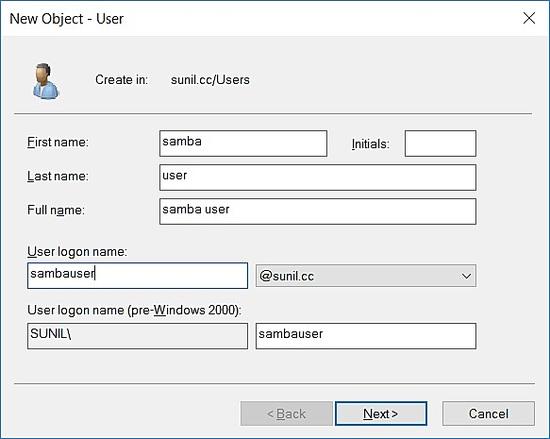

Anlegen eines Testbenutzers.

Client-Authentifizierung mit Samba 4 auf CentOS 7

192.168.1.22 – Client-Authentifizierung auf CentOS 7

Installation von Paketen:

[[email protected] ~]# yum -y install realmd sssd oddjob oddjob-mkhomedir adcli samba-common

Überprüfen Sie die Konnektivität mit samba4:

   [[email protected] ~]# realm discover SUNIL.CC
sunil.cc
  type: kerberos
  realm-name: SUNIL.CC
  domain-name: sunil.cc
  configured: kerberos-member
  server-software: active-directory
  client-software: sssd
  required-package: oddjob
  required-package: oddjob-mkhomedir
  required-package: sssd
  required-package: adcli
  required-package: samba-common-tools
  login-formats: %U
  login-policy: allow-realm-logins
[[email protected] ~]#

Beitritt zur Domäne.

[[email protected] ~]#  realm join SUNIL.CC
Password for Administrator:
[[email protected] ~]#

Überprüfen Sie, ob wir den Benutzer von samba4 bekommen können.

[[email protected] ~]# id SUNIL\\testuser
uid=1570001104([email protected]) gid=1570000513(domain [email protected]) groups=1570000513(domain [email protected])
[[email protected] ~]#

Konfigurieren Sie sssd.

[[email protected] ~]# cat /etc/sssd/sssd.conf

[sssd]
domains = sunil.cc
config_file_version = 2
services = nss, pam

[domain/sunil.cc]
ad_domain = sunil.cc
krb5_realm = SUNIL.CC
realmd_tags = manages-system joined-with-samba
cache_credentials = True
id_provider = ad
krb5_store_password_if_offline = True
default_shell = /bin/bash
ldap_id_mapping = True
use_fully_qualified_names = True
fallback_homedir = /home/%[email protected]%d
access_provider = ad
[[email protected] ~]#

Starten Sie sssd neu.

[[email protected] ~]# systemctl restart sssd
[[email protected] ~]# systemctl enable sssd

Überprüfen Sie den Benutzer.

[[email protected] ~]# id [email protected]
uid=1570001105([email protected]) gid=1570000513(domain [email protected]) groups=1570000513(domain [email protected]),1570000512(domain [email protected]),1570000572(denied rodc password replication [email protected])
[[email protected] ~]#

Um den Benutzer ohne Domänennamen zu erhalten.

[[email protected] ~]# vim /etc/sssd/sssd.conf
-----------
------------
use_fully_qualified_names = False
-----------
-----------

Starten Sie sssd neu und überprüfen Sie den Befehl id.

[[email protected] ~]# systemctl restart sssd
[[email protected] ~]# id sambauser
uid=1570001105(sambauser) gid=1570000513(domain users) groups=1570000513(domain users),1570000512(domain admins),1570000572(denied rodc password replication group)
[[email protected] ~]#

Client-Authentifizierung mit Samba 4 auf CentOS 6

192.168.1.192 – Client-Authentifizierung auf CentOS 6.

Installation von Paketen.

   [[email protected] db]#  yum install pam pam_ldap pam_krb5 sssd sssd-ldap sssd-common authconfig oddjob oddjob-mkhomedir openldap openldap-clients krb5-workstation adcli -y

Ändere die Kerberos-Konfigurationsdatei.

   [[email protected] db]# cat /etc/krb5.conf
[logging]
 default = FILE:/var/log/krb5libs.log
 kdc = FILE:/var/log/krb5kdc.log
 admin_server = FILE:/var/log/kadmind.log

[libdefaults]
 default_realm = SUNIL.CC
 dns_lookup_realm = false
 dns_lookup_kdc = false
 ticket_lifetime = 24h
 renew_lifetime = 7d
 forwardable = true

[realms]
 SUNIL.CC = {
  kdc = samba4.sunil.cc
  admin_server = samba4.sunil.cc
 }

[domain_realm]
 .sunil.cc = SUNIL.CC
 sunil.cc = SUNIL.CC
[[email protected] db]#

Wir werden den Befehl adcli verwenden, um der Domäne beizutreten.

   [[email protected] db]# adcli info sunil.cc
[domain]
domain-name = sunil.cc
domain-short = SUNIL
domain-forest = sunil.cc
domain-controller = samba4.sunil.cc
domain-controller-site = Default-First-Site-Name
domain-controller-flags = pdc gc ldap ds kdc timeserv closest writable good-timeserv full-secret
domain-controller-usable = yes
domain-controllers = samba4.sunil.cc
[computer]
computer-site = Default-First-Site-Name
[[email protected] db]#
[[email protected] db]# adcli join sunil.cc
Password for [email protected]:
[[email protected] db]#

Stellen Sie sicher, dass das Kerberos-Ticket erstellt ist.

   [[email protected] db]# klist -ke

Konfigurieren Sie die Authentifizierung.

   [[email protected] db]# authconfig --enablesssd --enablesssdauth --enablemkhomedir --update

Ändere jetzt die sssd-Konfiguration, um die Authentifizierung durchzuführen.

   [[email protected] db]# cat /etc/sssd/sssd.conf
[sssd]
services = nss, pam, ssh, autofs
config_file_version = 2
domains = sunil.cc

[domain/sunil.cc]
id_provider = ad
# Uncomment if service discovery is not working
# ad_server = server.win.example.com
default_shell = /bin/bash
fallback_homedir = /home/%u
[[email protected] db]#

Starten Sie den sssd-Dienst neu.

   [[email protected] db]# chkconfig sssd on
[[email protected] db]# service sssd restart
Stopping sssd:                                             [  OK  ]
Starting sssd:                                             [  OK  ]
[[email protected] db]#

Benutzer validieren.

   [[email protected] db]# id sambauser
uid=1570001105(sambauser) gid=1570000513(domain users) groups=1570000513(domain users),1570000512(domain admins),1570000572(denied rodc password replication group)
[[email protected] db]#

Das könnte dich auch interessieren …
